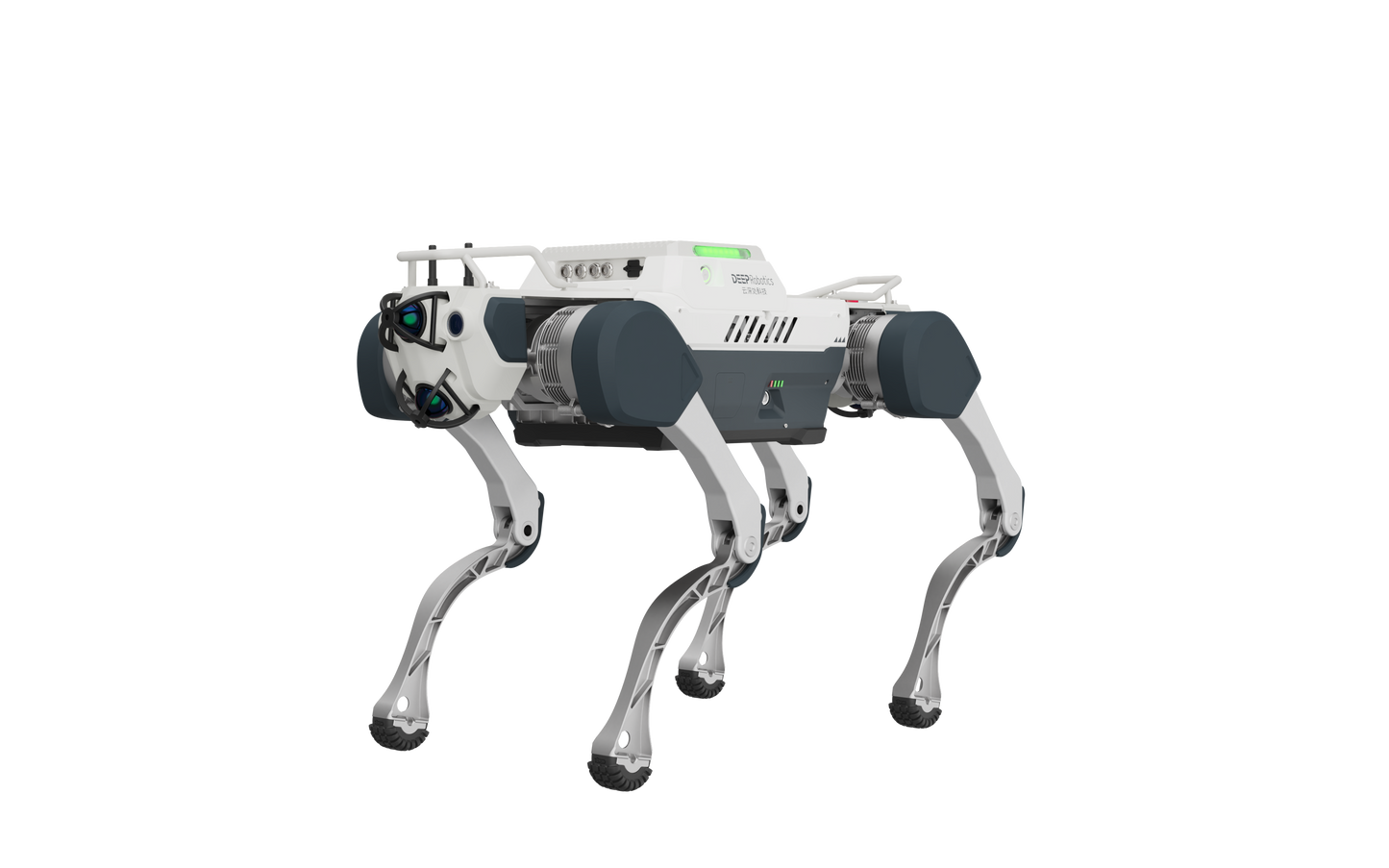

X30 Pro Product Specifications
General Parameters
- Standing Dimensions: 1000 × 585 × 470 mm
- Total Weight (including battery): 59 kg
- Effective Payload Capacity: ≥ 20 kg
Motion Performance Parameters
- Maximum Speed [1]: ≥ 4 m/s
- Maximum Slope [2]: ≤ 45 °
- Maximum Obstacle Height: ≥ 20 cm
Protection & Environmental Adaptability
- Ingress Protection Rating: IP67
- Operating Temperature Range: -20 °C ~ +55 °C
Battery & Endurance
- Endurance Time: 2.5 h ~ 4 h
- Operating Range: ≥ 10 km
- Battery Replacement: Quick-release design for rapid swapping
Communication & External Interfaces
- Interfaces: USB 2.0 / USB 3.0 / Ethernet / Wi-Fi
- Output Power Supply: 5 V / 12 V / 24 V
- Optional Modules: Built-in RTK module, industrial-level navigation interface
Functional Highlights
- Multi-sensor fusion localization and mapping algorithms
- Navigation planning and fusion calibration algorithms
- Smart light interaction interface
- Obstacle stop and stair-climbing perception
- Autonomous charging support
Notes
[1] Data from laboratory testing; actual speed limit may be restricted for safety in field operations.
[2] Performance may vary with terrain material and surface conditions.
All parameters are laboratory data. Actual performance in real environments may vary. Support for secondary development. Final interpretation rights reserved by DEEP Robotics.
